An ESP32 library for reading measurements, status and parameters from SANDISOLAR inverters over Bluetooth — including battery state of charge, voltages, currents, solar power, load, energy counters and fault codes.
The library discovers the inverter's Bluetooth logger, connects to it and reads data locally. No cloud account is needed for these reads. It provides decoded values and raw registers; it does not change inverter settings.

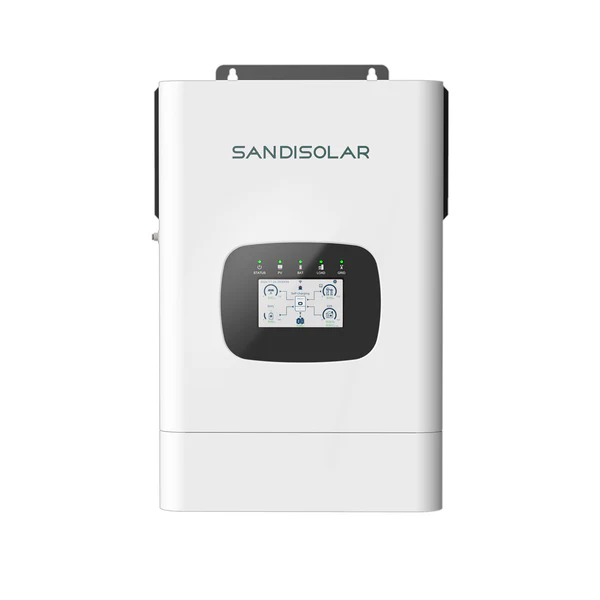

Product image: upstream integration. Externally referenced for identification; the image is not included in this repository's MIT license. Appearance alone does not establish compatibility.
Warning
Independent, experimental project; not affiliated with SANDISOLAR or Aohai. Validated protocol reads and some owner-compared values come from one SD PRO EU 6.5K / AO-6KSL-G3. The reusable adapter has passed single-unit discovery and a 10.5-hour read run with concurrent Wi-Fi/HTTPS: 1254 valid reads and four correlation-limit reconnects. This qualifies that tested combination, not every device/router or recovery scenario. The library has not been released yet. Parameter coverage depends on the model and firmware; some interpretations are explicitly experimental.
- BLE logger discovery, explicit/unique-device selection, connection and reads.
- Encrypted BLE framing, identity/correlation checks and both CRCs validated.
- Reads by parameter name, individually or in a group; no register addresses or manual scale calculations in normal BLE application code.
- 30 named telemetry signals: battery, PV, grid, load, EPS, energy and numeric inverter fault/warning codes. Code descriptions belong to the model manual.
- An opt-in catalogue of 297 register interpretations in total, including those 30. Uncertain meaning, encoding and scale are marked separately.
- Owned raw register words for custom interpretations.
- Portable C++11 Modbus RTU codecs, an RS-485 example, tests and API documentation.
No register-write, inverter configuration, firmware-upgrade, cloud-login or MQTT API. Your application owns Wi-Fi, polling cadence, caching and automation.
On the tested inverter, Bluetooth discovery must first be enabled in the HaiPower app for Android, in the inverter's Setting → General Setting screen:
- Set Bluetooth Enabled → Enable.
- Press Set; selecting Enable alone is not sufficient.
- Start the ESP's BLE scan promptly, while the inverter/logger is visible.
Once enabled and connected, keep the BLE session open for continuous reads. If Bluetooth becomes unavailable after a disconnection, repeat Enable → Set before reconnecting; a saved address does not bypass this requirement. The app may still display Enabled even when the logger is unreachable.
The example saves the logger address, address type and name in ESP32 NVS after the first validated read and tries that target directly on the next boot. Another scan is unnecessary while the saved target remains valid and connectable. The library does not enable Bluetooth or change inverter settings itself. See continuous reads and restart recovery.
The ESP must be near the inverter/logger. Avoid a simultaneous phone connection using Local Tool while the ESP connects. An ordinary cloud view in the app is not the same as a local Bluetooth connection.
The concrete BLE adapter currently targets Arduino-ESP32 2.0.17 / ESP-IDF 4.4 (tested compilation: ESP32-C3, PlatformIO Espressif32 6.8.1). It is not yet an Arduino 3.x, NimBLE or standalone ESP-IDF BLE adapter. Portable codecs/decoders do not have this BLE backend restriction. See support.
For Arduino IDE, install the repository as a library and select the compatible ESP32 core. For a local PlatformIO checkout next to your application:
[env:esp32c3]
platform = espressif32@6.8.1
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
lib_deps = symlink://../sandisolar-esp32Use ReadBatteryBle:
- No BLE MAC address is needed. Leave
logger_nameempty to select the only candidate, or set your logger name/PN, e.g.WF12345678, if several exist. This is not the inverter serial number. Examples contain synthetic values. - The sketch scans for 15 seconds, lists candidates, connects, and reads battery
SOC, SOH, voltage, current, temperature, current limits and capacity every 30
seconds by default. Edit
read_interval_msand itssignalsarray to choose cadence and parameters. It bounds retry attempts. - Several matching devices, incomplete scan results and missing data are errors; it never selects the strongest signal or replaces failed measurements with 0.
Public includes use <sandisolar.h> and
<sandisolar/arduino_bluedroid_link.h>, with namespace sandisolar.
On this IDF4 backend, starting Bluetooth with Wi-Fi modem sleep disabled
(WiFi.setSleep(false) / WIFI_PS_NONE) can abort inside the vendor coexistence
code. initialize_arduino_bluedroid() therefore returns Error::RadioConflict
(radio_conflict) before allocating queues or starting Bluetooth when it detects
that configuration. It does not disconnect, reconfigure or turn off Wi-Fi.
Your application owns radio configuration. A rejected preflight can be retried after the application selects a compatible configuration; do not disable modem sleep while BLE is active. Passing this check does not guarantee reliable Wi-Fi/BLE coexistence on a particular board/router. Keep a remote device's working network configuration unchanged until an alternative has been qualified. See backend limits and tests.
// One-time setup. Check every returned Error before proceeding.
sandisolar::initialize_arduino_bluedroid();
auto& scanner = sandisolar::arduino_bluedroid_scanner();
scanner.start(15, millis()); // optionally pass exact logger name/PN
// In loop(): scanner.poll(millis()); when scanner.take(scanResult) succeeds:
auto candidate = sandisolar::select_ble_candidate(scanResult);
if (candidate) {
session.connect(candidate.value.target(), millis()); // name copied now
}
// session.poll(millis()); after state()==Ready:
const auto& profile = sandisolar::aohai_modbus_v214_profile();
sandisolar::read_signal(session, profile, sandisolar::SignalId::BatterySoc, millis());
// poll + take(readResult); registers are usable only when error == Error::None.This outline omits declarations and state handling; use the complete example above. The adapter owns the Bluetooth stack exclusively. Do not initialize BLEDevice/NimBLE alongside it. Scan and GATT connection are mutually exclusive; consume scan results before connecting. The application explicitly chooses the inverter profile. Discovery hints are not authenticated identity or model proof.
- BLE discovery and selection
- BLE session, lifecycle and errors
- Continuous reading, saved targets and restart recovery
- Experimental parameters and complete catalogue
- Architecture and responsibility boundaries
For wider parameters include <sandisolar/experimental.h>. Retain the proposed
interpretation's ProtocolMap, Hypothesis, ConflictingSources or Unknown
metadata and original words. 297 interpretations does not mean 297 working
sensors. SOC register 128 retains a conservative scale-quality flag: raw 97 and
100 matched 97% and 100% on the tested unit; other ranges/models need comparison.
Timestamps describe callback arrival, not the inverter's acquisition time.
The following fragments run after discovery and connection, using the
session from ReadBatteryBle.
Request a read once when ready; keep calling session.poll(millis()) in loop().
Use the same profile to request and decode a result.
const auto& profile = sandisolar::aohai_modbus_v214_profile();
const auto error = sandisolar::read_signal(
session, profile, sandisolar::SignalId::BatterySoc, millis());
if (error != sandisolar::Error::None) {
Serial.println(sandisolar::error_name(error));
}Error::None means request accepted, not that a value is already available.
Later, in loop():
session.poll(millis());
sandisolar::BleReadResult result{};
if (session.take(result)) {
const auto soc = sandisolar::decode_signal(
sandisolar::aohai_modbus_v214_profile(), sandisolar::SignalId::BatterySoc, result);
if (soc) {
Serial.printf("SOC: %.1f %% (quality=%s)\n",
sandisolar::scaled_value(soc.value),
soc.value.quality == sandisolar::Quality::Good ? "good" : "unverified_scale");
} else {
Serial.printf("SOC unavailable: %s\n", sandisolar::error_name(soc.error));
}
}The result overload propagates read failures. It does not convert a timeout to
0% or silently use an earlier measurement. Decoding handles signedness;
scaled_value() applies the profile's scale. Keep Reading::quality alongside the displayed value.
Decoding performs no I/O and can be repeated on the same owned result.
These are alternative global signals arrays for the complete
ReadBatteryBle sketch. Replace its
array with one below; its existing loop handles the connection, read, errors and
printing. No addresses, offsets, register widths or scale factors are needed.
Battery measurements (the default):
const sandisolar::SignalId signals[] = {
sandisolar::SignalId::BatterySoc,
sandisolar::SignalId::BatterySoh,
sandisolar::SignalId::BatteryVoltage,
sandisolar::SignalId::BatteryCurrent,
sandisolar::SignalId::BatteryTemperature,
sandisolar::SignalId::BatteryMaxChargeCurrent,
sandisolar::SignalId::BatteryMaxDischargeCurrent,
sandisolar::SignalId::BatteryRatedCapacity,
};Power readings — all returned in watts, including separate battery charging and discharging values:
const sandisolar::SignalId signals[] = {
sandisolar::SignalId::PvTotalPower,
sandisolar::SignalId::ActiveOutputPower,
sandisolar::SignalId::PowerToUser,
sandisolar::SignalId::GridExportPower,
sandisolar::SignalId::LoadPower,
sandisolar::SignalId::EpsActivePowerR,
sandisolar::SignalId::BatteryChargePower,
sandisolar::SignalId::BatteryDischargePower,
};PV, grid and EPS electrical readings (V, A and Hz):
const sandisolar::SignalId signals[] = {
sandisolar::SignalId::Pv1Voltage,
sandisolar::SignalId::Pv1Current,
sandisolar::SignalId::GridVoltageR,
sandisolar::SignalId::GridCurrentR,
sandisolar::SignalId::GridFrequency,
sandisolar::SignalId::EpsVoltageR,
sandisolar::SignalId::EpsFrequency,
};Energy counters (kWh):
const sandisolar::SignalId signals[] = {
sandisolar::SignalId::PvEnergyToday,
sandisolar::SignalId::PvEnergyTotal,
};Inverter status and numeric fault/warning codes, without a description dictionary:
const sandisolar::SignalId signals[] = {
sandisolar::SignalId::InverterStatus,
sandisolar::SignalId::InverterFaultCode,
sandisolar::SignalId::InverterWarningCode,
sandisolar::SignalId::InverterFaultSubcode,
sandisolar::SignalId::InverterWarningSubcode,
};Each group uses the same request call, only when the session is ready and the previous result has been consumed:
const auto error = sandisolar::read_signals(session, profile, signals, millis());
if (error != sandisolar::Error::None) {
Serial.println(sandisolar::error_name(error));
}For every successful take(result), decode all members of the requested group:
for (auto signal : signals) {
const auto reading = sandisolar::decode_signal(profile, signal, result);
if (!reading) {
Serial.printf("%s: unavailable (%s)\n", sandisolar::signal_name(signal),
sandisolar::error_name(reading.error));
continue;
}
Serial.printf("%s: %.2f %s (raw=%lld, quality=%s)\n",
sandisolar::signal_name(signal), sandisolar::scaled_value(reading.value),
sandisolar::unit_symbol(reading.value.unit),
static_cast<long long>(reading.value.raw),
reading.value.quality == sandisolar::Quality::Good ? "good" : "unverified_scale");
}For a numeric code, use reading.value.raw; a communication error is instead
reading.error. Quality::Good is profile/decoding metadata, not a guarantee
that a parameter is physically supported by every inverter or that data is fresh.
The library derives the smallest contiguous range covering a group, including
both words of 32-bit values and any intervening registers. All signals must use
the same table and fit in 125 registers; otherwise FieldOutOfRange is
returned before sending anything. Unknown signals return UnsupportedSignal.
An empty group is invalid. No partial group is silently read.
Read the groups above separately to cover all 30 named signals. Do not concatenate
them into one request: e.g. SOC and total PV energy are too far apart. Request
one group, consume its result, then request the next at your chosen cadence.
Busy can also mean the session's minimum one-second command gap has not elapsed.
Results from different reads are not an atomic snapshot. Compact group ranges
are covered by software tests; hardware coverage is limited to full pages and
selected short reads.
For raw RTU/RS-485 or custom transport code, signal_read_range(profile, signal)
(or the array overload) exposes the derived table/start/count without doing I/O.
The lower-level session.read(...), RegisterBlockView and raw decoders remain
available when you deliberately need register-level access. The opt-in
experimental catalogue still exposes addresses as stable identifiers because
some parameter meanings are not yet known reliably.
DecodeCapturedPage is only a synthetic decoder demonstration: its raw sample
numbers represent fake input data, not values an application must supply to read
an inverter. Normal BLE code uses the named APIs above and receives actual
registers from the session.
To use this library alongside other NimBLE clients, select the NimBLE adapter instead of Bluedroid. The application initializes Bluetooth once; each library owns only its device connection. Neither library needs to know about the other.
lib_deps =
https://github.com/PiotrAuguscik/sandisolar-esp32.git
h2zero/NimBLE-Arduino@2.3.6
build_flags = -DSANDISOLAR_USE_NIMBLE=1#include <NimBLEDevice.h>
#include <sandisolar/arduino_nimble_link.h>
// In setup, after enabling Wi-Fi modem sleep if Wi-Fi is active:
NimBLEDevice::init("my-controller");
NimBLEDevice::setMTU(512);
const auto error = sandisolar::attach_arduino_nimble();Construct BleReadSession with sandisolar::arduino_nimble_link() and
sandisolar::esp32_mbedtls_aes128_cbc(); the named read/decoding APIs above are
unchanged. See NimbleSavedLogger.
This adapter connects to a known address, address type and logger identity;
it does not provide a scanner. Save these from an initial discovery. Knowing the
address does not bypass the logger's Bluetooth enable requirement.
The adapter never initializes/deinitializes NimBLE or changes Wi-Fi. Disconnect closes only its own client. Keep the NimBLE runtime alive, configure enough client slots, coordinate scanning in the application, and call the session from one task. A bounded worker handles blocking GATT operations; continue polling the session regularly. Queue overflow fails the session rather than returning partial data. Do not combine this profile with Bluedroid on the same ESP32.
- DecodeCapturedPage: decode synthetic battery data and numeric fault/warning codes offline.
- DecodeExperimentalPage: inspect uncertainty and apply a custom interpretation to original words.
- EncodeBlePageRead: construct an encrypted read request offline.
- ReadSocRs485: a direct RS-485 example; verify your inverter's user/Modbus port and pinout. A suitable 3.3 V-compatible transceiver is required; never connect ESP GPIO directly to RS-485 A/B.
Host tests require a C++11 compiler, CMake >=3.16 and OpenSSL development headers/library. OpenSSL is a host-test dependency only, not an ESP dependency.
cmake -S . -B build
cmake --build build --parallel
ctest --test-dir build --output-on-failure
python3 -m unittest discover -s tools -p 'test_*.py'Tests cover named read planning, codecs, decoders, malformed responses, discovery selection and BLE lifecycle failure transitions. An SDK double tests actual adapter code, but cannot prove real radio/RTOS behavior. Automated ESP32-C3 compilation checks the public example without flashing. Hardware qualification is a separate step.
The library rejects invalid/mismatched frames. Applications must also reject
stale or insufficiently qualified values before using them for automation.
Multi-page atomic snapshots and automatic model/profile resolution are not
implemented. Fault/warning numbers are inverter data; Error describes a
library/communication operation and must not be confused with those numbers.
Protocol mapping benefited from bootuz-dinamon/Sandisolar-Aohai-AO-6KSL-G3-Home-Assistant-integration and its published register map. Thank you to its author. This is a separate C++ implementation, not a fork or bundled copy of that integration.
- App used for protocol analysis: HaiPower on Google Play,
Android package
com.aohai.power. Local BLE framing was reconstructed from version 2.0.3. The store link may now offer a newer version; it is not a pinned download of the analyzed APK. - Register addresses, types and scales: Modbus RTU Protocol V2.14-1 register-map archive,
containing the
.xlsxworkbook used for the profile and experimental catalogue. This is the inverter-specific map, not just the generic Modbus specification. It documents register interpretations; the BLE encryption/envelope is separate.
The register-map and image links are pinned to an upstream revision. Those third-party materials retain their own rights; this project's MIT license does not relicense them.
This repository contains the library, examples, tests and user/API documentation. APK/decompiled code, vendor archives, capture tools, field-laboratory firmware, private captures and research notebooks are not distribution dependencies.
This library was developed with AI assistance, including protocol analysis, C++ code, tests, examples and documentation. AI-generated work can contain errors. Automated tests and the limited device comparisons described above do not replace independent review or hardware qualification. Uncertain parameters remain marked; do not treat this library as safety-certified inverter control software.
See CONTRIBUTING.md. MIT: LICENSE.
