Deliverable 3: MVP

Table of Contents

• 1. Architecture & Data
  • 1.1. Deployment Diagram
  • 1.2. Component Diagram
  • 1.3. Data Model
• 2. Corporate Image
• 3. Repository
• 4. Video
• 5. Project management
  • 5.1. Backlog
  • 5.2. Weekly Meetings
  • 5.3. Retrospective

---

1. Architecture & Data

1.1. Deployment Diagram

What changed

1. Added the gunicorn and nginx to Programs.
2. Added "dall-e-2" model to API node along gpt-3.5-turbo.
3. Specified the PostgreSQL version.
4. Specified operating version system (was "Ubuntu Jammy", now is "Ubuntu 22.04.1").
5. Switched from an AWS EC2 instance to an Oracle Cloud instance.
6. Updated libraries:
   1. Removed pandas and pillow.
   2. Specified matplotlib version.
   3. Added dotenv, openai, and django-bootstrap.
7. Changed "ChatGPT 3.5" to "gpt-3.5-turbo".
8. Downgraded to Python 3.10.12 from Python 3.11.1.

1.2. Component Diagram

Architectural overview

We use an MVC architecture where each component is, for the most part, directly mapped to a Django "app".

Module descriptions

1. Authentication: Handles the sign-up, login, logout, and session.
2. Recipes: Generates and displays recipes and their corresponding images.
3. Kitchen: Creates ingredients and reminds user to update it.
4. Statistics: Generates and shows a report.
5. User: Handles editing and deleting accounts.

What changed

No changes.

1.3. Data Model

What changed

1. Fixed the relationship between Ingredient.user_id and User.id (was User.username).
2. Removed the fields first_name, last_name, is_staff, is_active, is_superuser, date_joined from the User table as they were not that important to represent our system, but they still exist as fields in Django's default User model.
3. Removed the fields unit_count and measurement_unit from the Ingredient table.

Data dictionary

User

#	Column	Data type	Description
1	id	int	Unique id.
2	email	varchar	Used for log-in.
3	password	hash	Log-in credentials. Not stored as plain-text.
4	last_login	date	Last time the user interacted with the system.

Kitchen

#	Column	Data type	Description
1	user_id	int	Id of the user.
2	last_modified_at	timestamp	Unix time when the user last modified any ingredients.

Recipe

#	Column	Data type	Description
1	id	int	Unique id.
2	user_id	int	Id of the user for whom the recipe was generated.
3	title	varchar	Title generated by the LLM.
4	description	varchar	Steps of the recipe generated by the LLM.
5	prompt	varchar	Prompt sent to the LLM to generate the recipe
6	generated_at	timestamp	Unix time when the recipe was generated.
7	is_favorite	boolean	Whether the user marked the recipe as favorite.

Ingredient

#	Column	Data type	Description
1	id	int	Unique id.
2	user_id	int	Id of the user that created the ingredient.
3	name	varchar	Name of the ingredient (user inputted).

RecipeHadIngredient

#	Column	Data type	Description
1	recipe_id	int	Id of a generated recipe.
2	ingredient_name	varchar	Name of the ingredient at the time the recipe was generated.

2. Corporate Image

Color palette

A complementary .ase file can be downloaded from here.

Fonts

Glory and Montserrat are both licensed under the Open Font License.

Logo

Generated with Microsoft Image Creator.

Slogan

We want to emphasize that our app uses the ingredients you already have so that they don't go to waste.

Screenshots from application

Main screen

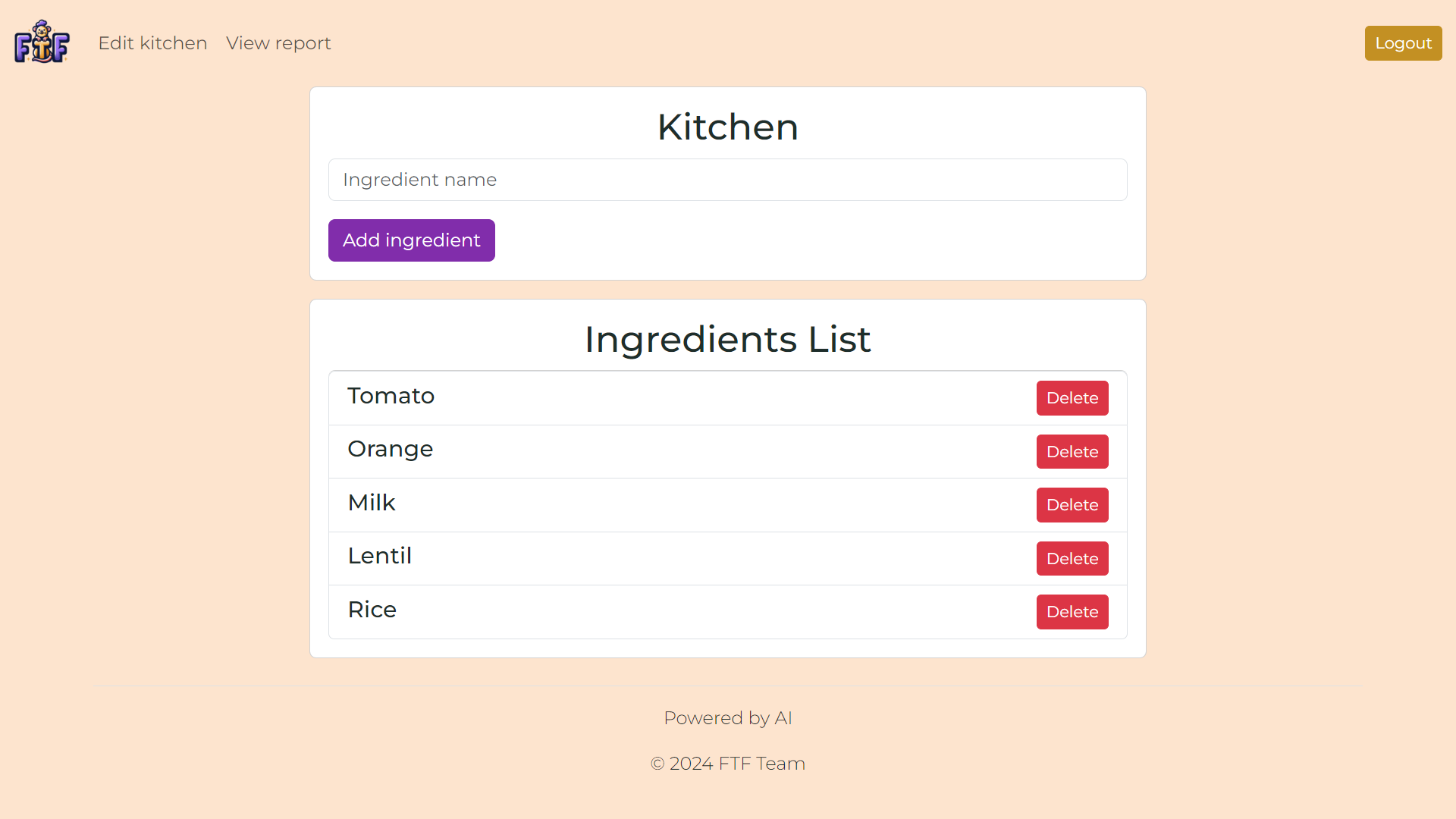

Kitchen

Recipe

3. Repository

1. requirements.txt.

   Generated with the pipreqs package (which only includes packages that have been imported in the project).

2. README.md with installation instructions.

4. Video

https://www.youtube.com/watch?v=dQw4w9WgXcQ

5. Project management

5.1. Backlog

Sprint backlog: https://github.com/users/alejoriosm04/projects/1/views/3?filterQuery=iteration%3A%22Iteration+3%22

5.2. Weekly Meetings

1. Weekly 8: 2024‐03‐19
2. Weekly 9: 2024‐04‐04
3. Weekly 10: 2024‐04‐11
4. Weekly 11: 2024‐04‐16

5.3. Retrospective
