Inspired by oci-oke Oracle quickstart guide.

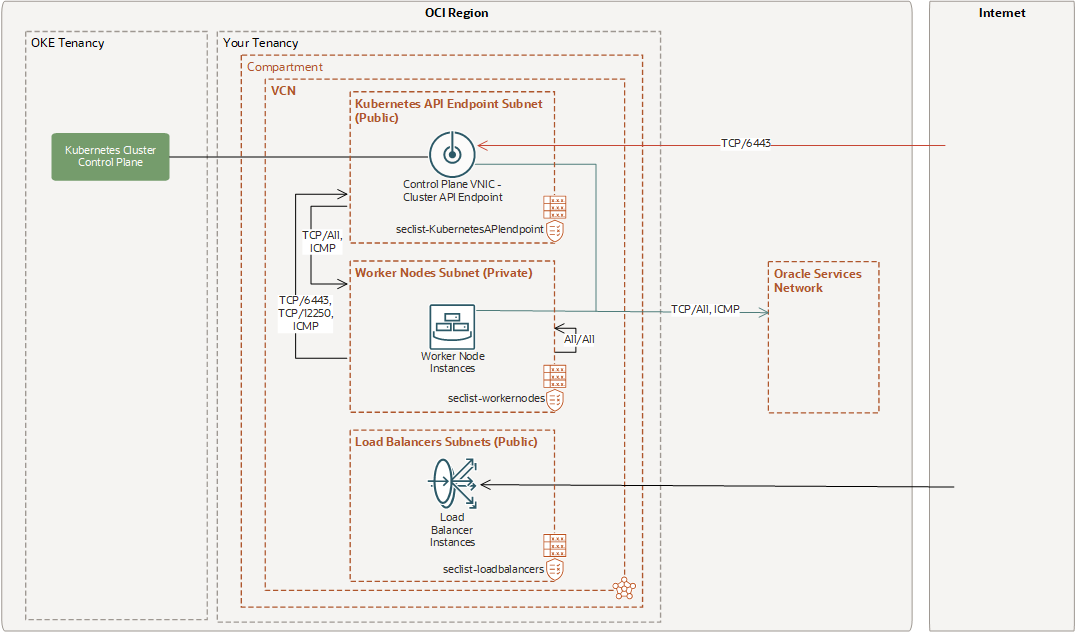

Both the Kubernetes API endpoint and the service load balancer are public. Corresponds to the use-case defined here.
Starting with Kubernetes 1.35, platform images are not supported for worker nodes — only OKE images (which have Kubernetes pre-baked) are allowed. See OCI docs on images and shapes.
This module uses data.oci_containerengine_node_pool_option to discover available OKE images and selects the appropriate one by matching on:
- Kubernetes version — the
kubernetes_versionvariable (withoutvprefix) is matched against the OKE image source name (e.g.1.35.2matches...-OKE-1.35.2-1402) - CPU architecture — A1 Flex shapes are ARM (
aarch64); all other Standard shapes arex86_64
The kubernetes_version variable should be set without the v prefix (e.g. "1.35.2"). The module prepends v when passing it to the OCI API for the cluster and node pool resources.
| Variable | Description | Default |
|---|---|---|
compartment_id |
OCI compartment OCID | — |
vcn_name |
VCN name | "vcn" |
vcn_cidr |
VCN CIDR block | "10.1.0.0/16" |
cluster_name |
OKE cluster name | "oke" |
kubernetes_version |
K8s version without v prefix (e.g. "1.35.2") |
"v1.26.2" |
node_pools |
Map of node pool configs (shape, ocpus, memory, size, initial_node_labels, boot_volume_size_in_gbs) | — |
ssh_public_key |
SSH public key for nodes (auto-generated if empty) | "" |
is_api_subnet_public |
Public API endpoint | true |
is_loadbalancer_subnet_public |
Public load balancer | true |
is_nodes_subnet_public |
Public worker nodes | false |
