Raspberry Pi Zero Smart Barcode Scanner

Requirements

• Raspberry Pi Zero 2W
• SD Card with Raspberry Pi OS Bookworm (with Legacy Camera System Disabled)
• Pi Camera v1/v2 and Cable
• Rotary Encoder with Button
• Push button for scan trigger
• ST7789 TFT LCD (Other SPI LCDs may work, but haven't been tested)
• (Optional) 30mm Fan - only required for overclocking
• USB Cable (Micro-B to USB-A or directly solder USB-A cable to pads)

3D Printed handheld Scanner

The 3D Printed Scanner is a modular and compact handheld scanner housing.

Warning

The 3D models are made for the pre-July 24, 2019 displays. Slight modifications are required for the newer models.

Required Parts

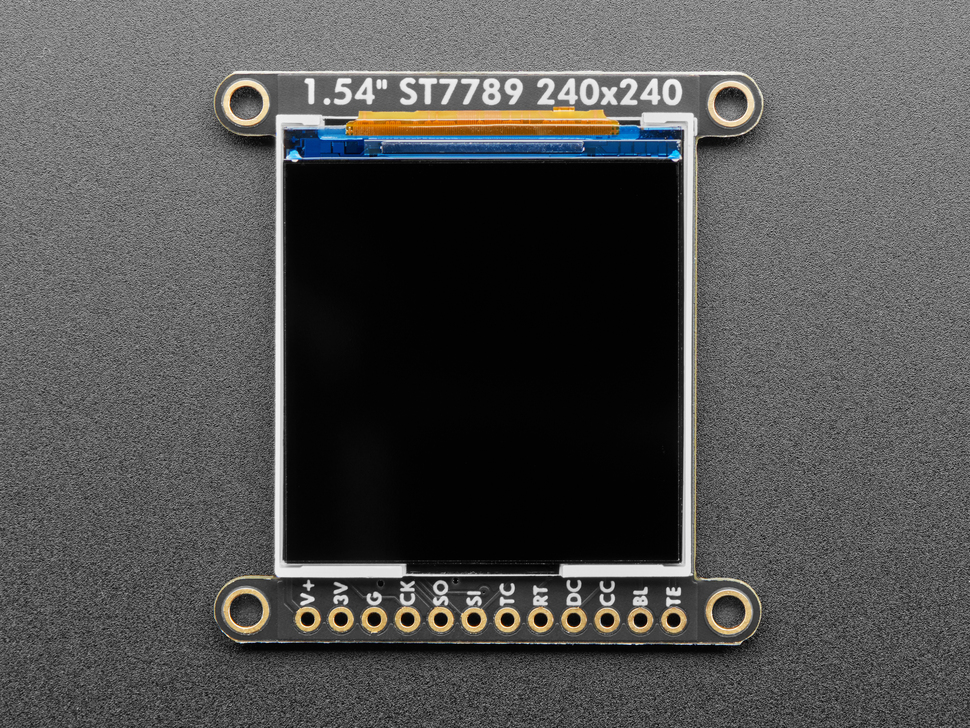

• Adafruit 1.54in ST7789 Display

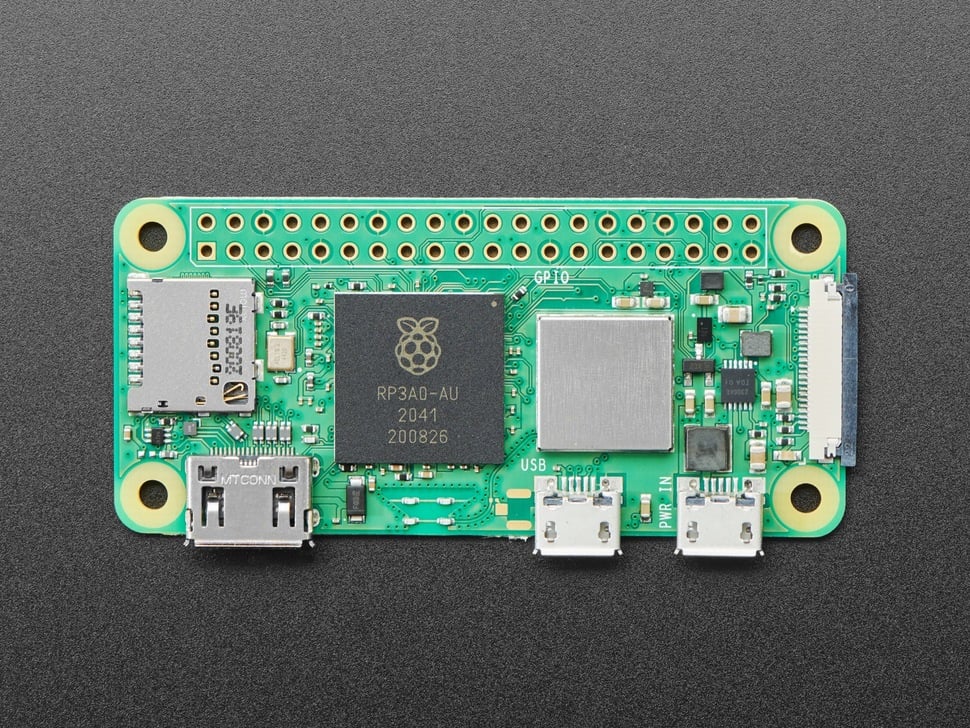

• Raspberry Pi Zero 2W

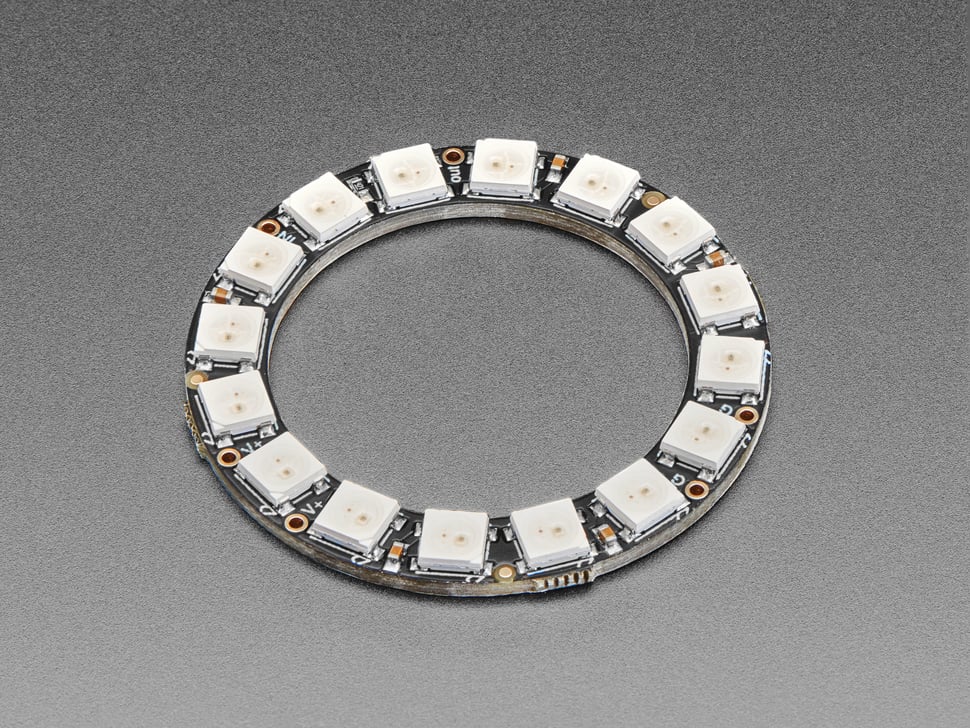

• 16x Neopixel Ring

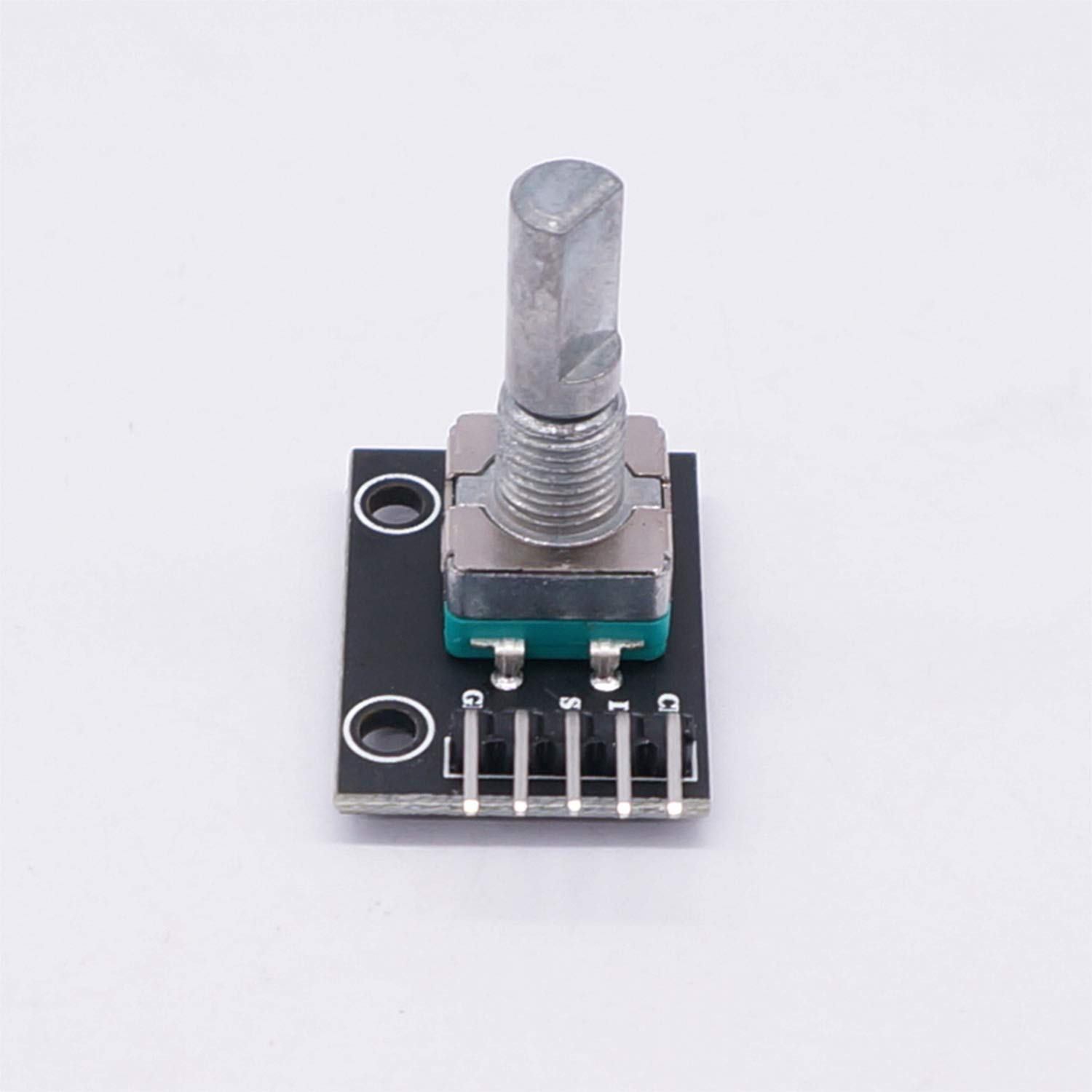

• KY-040 Rotary Encoder PCB



• 6x6x9 Tactile Push Button

• 5mm LED (Optional for Power Indication)

• PS1240P02BT (or similar) 3V 12.2mmx6.5mm Piezo Buzzer

• 5V 2A Power Supply (hard-wired into scanner, or modify the base for a connector of your choice)

• USB-A Cable with end cut off (for hard-wiring into scanner)

Hardware Setup

• Follow the Adafruit LCD wiring guide

  The default configuration uses the wiring available here

• Encoder Wiring

GPIO Pin	Encoder
GPIO17	Encoder A/CLK
GPIO18	Encoder B/DAT
GPIO27	Encoder Btn
GND	GND
3.3V	+

• Trigger Wiring

GPIO Pin	Button Pin
GND	Pin 1
GPIO20	Pin 2

• LED Wiring

GPIO Pin	LED Pin
GND	GND
5V	+
GPIO21	DAT_IN

• Buzzer Wiring

GPIO Pin	Buzzer Pin
GND	1
GPIO19	2

• Connect the Pi Camera

Installation

• Install System Packages

  sudo apt install python3-picamera2 python3-venv python3-pip libzbar-dev fonts-dejavu git supervisor

• Install USB Gadget Driver

Important

A reboot is required after this step

git clone https://github.com/thewh1teagle/zero-hid
cd zero-hid/usb_gadget
sudo ./installer
sudo reboot

• Clone Repo

git clone https://github.com/meowmeowahr/rpi-barcode-scanner && cd rpi-barcode-scanner

• Create Environment

python3 -m venv .venv
source ./.venv/bin/activate
pip install uv
uv sync

• Link pykms and libcamera

ln -s /usr/lib/python3/dist-packages/pykms ./.venv/lib/python3.11/site-packages
ln -s /usr/lib/python3/dist-packages/libcamera ./.venv/lib/python3.11/site-packages

• (Optional) Enable Bluetooth HID support

The scanner can output scanned barcodes over Bluetooth Low Energy as a wireless HID keyboard. The Raspberry Pi Zero 2W has an onboard Bluetooth radio, so no extra hardware is required.

sudo apt install bluez bluez-firmware pi-bluetooth

Note

HID over GATT requires the bluetoothd daemon to be running (systemctl start bluetooth). The scanner registers its own HID GATT service, so no special BlueZ plugins are needed.

• (Optional) Test Camera

libcamera-hello

You should see output containing something like the following

[1:10:17.433392327] [2017]  INFO Camera camera_manager.cpp:326 libcamera v0.5.0+59-d83ff0a4
[1:10:17.500249834] [2020]  WARN RPiSdn sdn.cpp:40 Using legacy SDN tuning - please consider moving SDN inside rpi.denoise
[1:10:17.506046852] [2020]  INFO RPI vc4.cpp:447 Registered camera /base/soc/i2c0mux/i2c@1/ov5647@36 to Unicam device /dev/media3 and ISP device /dev/media0

• Create the configuration

We will copy the example configuration file to the home directory, where it will be detected by the autostart script.

cp config.yml ~/config.yml

Get the UDC device address

ls /sys/class/udc

You should get something like the following

3f980000.usb

Note down this value, and set it in the configuration section, hid/udc

Note

If there are multiple device addresses, you will need to trial-and-error them. Try each, and restart the scanner. The connection status in the top left should reflect if the USB-HID interface is connected.

You can restart the scanner process with sudo supervisorctl restart scanner

• Configure Autostart

sudo systemctl enable supervisor
sudo systemctl start supervisors

Edit the /etc/supervisor/conf.d/barcode-scanner.conf file to contain the following:

Note

Replace /home/scanner with your user path

[program:scanner]
user=root
directory=/home/scanner
command=/home/scanner/rpi-barcode-scanner/.venv/bin/python /home/scanner/rpi-barcode-scanner/main.py

autostart=true
autorestart=true
stdout_logfile=/var/log/barcode-scanner/stdout.log
stderr_logfile=/var/log/barcode-scanner/stderr.log

Start the scanner

sudo mkdir /var/log/barcode-scanner
sudo supervisorctl start scanner

Configuration

Bluetooth HID Output

To use the scanner as a Bluetooth keyboard instead of (or in addition to) a USB keyboard:

1. Set the connection mode to BT in the Settings menu (Settings → Connection → BT), or change default_value in main.py.
2. The scanner advertises itself as a Bluetooth keyboard with the name configured below.
3. On the receiving device (phone, tablet, PC), scan for and pair with the device name.
4. The toolbar shows BT: OK when a device is paired and connected.

Bluetooth settings are configured in config.yml:

bluetooth:
  name: "Raspberry Pi Barcode Scanner"

Note

The Bluetooth radio is always advertised when the app runs, but scanned barcodes are only sent over Bluetooth when the Connection setting is set to BT. The BT: OK/BT: NO indicator in the toolbar reflects whether a Bluetooth client is currently connected.

FAQ

Q: The scanner application fails on auto-start.

A:

1. Check log files

   cat /var/log/barcode-scanner/stderr.log
   cat /var/log/barcode-scanner/stdout.log

2. Check service startup

   sudo supervisorctl status scanner
   sudo supervisorctl start scanner
   sudo supervisorctl status scanner

   You should get something like the following:

   scanner                          RUNNING   pid 2469, uptime 0:02:43


Licenses

This project is licensed under the MIT License.

The contents of the fasthid and vnc directories are licensed under the LGPLv3.
