alfenctl

A command-line tool for Alfen EV charging stations on your local network: discover them, inspect and change every property, back up and restore their configuration, upgrade firmware, and upload a custom splash-screen logo.

A small, clean Python reimplementation of the useful core of Alfen's Windows ACE Service Installer, reverse-engineered from the v4.3.0 binary (and its bundled property catalog and resource blobs) and verified against a live NG910 charger (firmware 7.4.5). No Alfen cloud account is involved — everything happens on your LAN, directly against the charger.

There is a web interface too

alfenctl ui serves the same code from your own machine: a live dashboard of what the charger is doing, and a tab for each job the command line does. Nothing to build, no account, no cloud — one command and a browser tab.

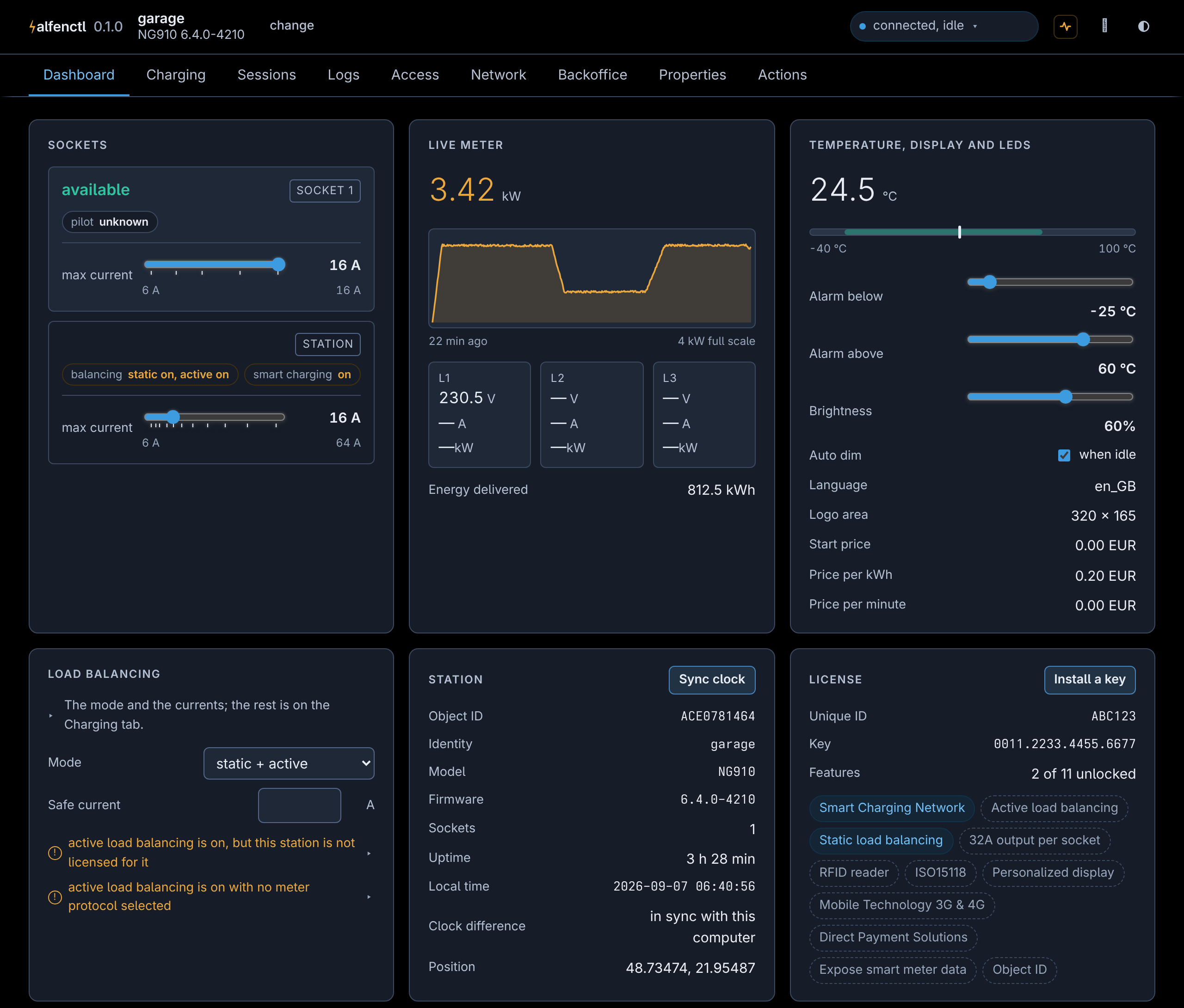

The dashboard, over the demo charger the test suite uses — no real station's identifiers appear in the picture, and the power trace is a scripted session rather than a recording of one. docs/web-ui.md walks through the rest of the tabs.

Install it

You need Python 3.10 or newer. If you are not sure you have it, take the first option — it brings its own.

Anywhere, without installing Python first, use uv, a single binary:

$ uv tool install alfenctl
$ alfenctl list

uvx alfenctl list runs it once without installing anything at all, which is a fair way to see whether it finds your charger.

With a Python you already have, pipx gives the same isolated install:

$ pipx install alfenctl

pip install alfenctl works as well, and is the right choice only if you mean to import alfenctl from your own code; for a command you type, an isolated install saves you the dependency conflicts.

First run

$ alfenctl list                          # what is on this network
$ alfenctl config init                   # start a settings file
$ alfenctl info --station 192.168.11.42  # ask one charger who it is

alfenctl config init writes a commented alfen.toml and prints where it went; alfenctl config show says what alfenctl actually read out of it, and alfenctl config path prints the path alone, for a script. Nothing needs the file — --host, -u and -p carry the same information on every command — but writing an address and a password down once is pleasanter than typing them thirty times.

Notes per platform

• Windows. The settings file goes in %APPDATA%\alfen\alfen.toml. After uv tool install, a new terminal (or uv tool update-shell) is what puts alfenctl on your PATH.
• macOS and Linux. The settings file goes in ~/.config/alfen/alfen.toml, or under $XDG_CONFIG_HOME if you set one.
• All three. Discovery is mDNS, so it only finds chargers on the same network segment, and a host firewall that blocks UDP 5353 will stop it. --host <ip> needs no discovery and always works.

Commands

Command	What it does
list	discover Alfen chargers on the LAN (mDNS)
info	show a charger's identity, model, firmware, sockets, board revisions, RFID readers, modem and clock
config [ACTION]	show what alfenctl reads from alfen.toml, without the passwords (the default); path prints where it looks; init writes a commented starter file
ui	serve the web interface in a browser: a dashboard of what the charger is doing, and tabs mirroring the CLI -- charging (load balancing, profiles, SCN), access (authorization, tags, passwords), network, backoffice, history (sessions and the log), every property, backup/restore/presets, and the actions (--listen, --read-only)
license [ACTION]	show licensed features and the key (the default), or set KEY to install a new one
status	what the charger is doing right now: socket state, what its screen is showing and any error behind it, which sockets are in service, meter, energy delivered, temperature (--json, --watch [S] to keep it updating)
current [ACTION]	show the charging current limits (the default), or set AMPS one — per socket, --station-max for the whole station, or --external for the live request a solar or tariff controller drives
socket [ACTION]	show which sockets are in service (the default), or enable/disable one — a read-modify-write of the bit field they share
brightness [ACTION]	show the display and LED brightness (the default), or set PERCENT [--auto on|off]
loadbalancing [ACTION]	show load balancing and solar charging (the default), or set them: mode, meter protocol, safe current, phase switching, green share; alias lb
props [PATTERN]	list all charger properties and values (--json, --cat, glob filter on id/name/title)
get ID…	read properties by id (2062_0) or name (sysMaxStationCurrent)
set ID VALUE	write one property, with type/range validation and read-only protection
export [FILE]	dump properties to JSON or the app's XML settings format, plain or encrypted (--xml/--exml, or a .xml/.exml file name) (<object-id>.json on a terminal, stdout when piped; asks before overwriting an existing file; --pattern/--cat/--writable-only)
preset [NAME]	list the presets Alfen publishes — property settings, Modbus meter maps, and several hundred backoffice presets — or apply one; a backoffice preset is a signed blob, so it goes through the firmware channel and needs a reboot (--save, --dry-run)
import FILE	apply a JSON dump, with a diff preview, --dry-run, and a confirmation prompt; skips device-bound properties (--force to write them)
firmware [FILE]	upgrade firmware — with no file, lists the compatible releases Alfen publishes and lets you pick one (--list, --all); checks compatibility, polls through the reboot, commits
log	export the charger's own event log since a date (--since, default today; --all, --range, -n N tail, -g REGEX filter, --type error by kind; default <object-id>.log on a terminal)
transactions	export charging sessions and OCPP events (CSV by default, --json/--raw, --since, --socket, --erase), or total them with --summary [month|socket|tag]; alias tx
logo FILE	convert an image and upload it as the charger's splash-screen logo (--save FILE writes the package instead)
tags [ACTION]	local RFID whitelist: list (the default), add, remove, clear, learn, import, master (a tag that always authorises, no whitelist needed); alias whitelist
auth [ACTION]	show who may start a session (the default), or set it: the mode, the two lists, and the offline action the charger stores as two registers; alias authorization
ocpp [ACTION]	show the backoffice connection (the default), or set it: URLs, protocol, heartbeat, timeouts, proxy
password ACTION	set a new login password, temporary one that expires, recover with the code on the charger, or pin for the Eve Connect app's access PIN
wifi [ACTION]	scan for nearby networks (the default; --enable switches the radio on first, without which a scan finds nothing), connect SSID [--psk …] to join one, enable/disconnect for the radio, or ap for the charger's own access point
network	where the charger is on the network: Ethernet, Wi-Fi and modem addresses, read-only
meter-test	live per-phase readings from an external Modbus TCP/RTU smart meter, for checking its wiring during commissioning (--json)
meter-map [ACTION]	custom Modbus register map for a meter the charger does not know by name: show (the default), save FILE, apply FILE
charging-profiles [ACTION]	OCPP smart-charging profiles: list (the default), show ID, clear [ID], install-uk (the UK Smart Charging default schedule); alias charging-profile
direct-start [ACTION]	let a socket charge despite an installed profile: show (the default), on, off, and the randomised start delay
scn [ACTION]	Smart Charging Network membership: status (the default; --peers), create NAME, join NAME, leave
time [ACTION]	show the charger's clock and time zone (the default), or sync it to this computer
secret [ACTION]	install what properties cannot carry: the OCPP authorization key, proxy password, TLS certificates. list (the default), set NAME [VALUE|FILE]
calibrate tilt	store the charger's current position as upright
reboot	restart the charger and wait for it to come back (--no-wait, --timeout S)
cmd WORDS…	send a command to the charger's own console (the app's Command Window); --list prints what the vendor apps are known to send
erase TARGET	erase settings (factory defaults), personal-data, or transactions
doctor	one read-only pass over everything the vendor app warns about, across every panel (--json)

Commands written [ACTION] run their read-only action when you leave the action out, so alfenctl tags lists the tags and alfenctl scn --peers is scn status --peers. password and calibrate are deliberately not among them: every action they have changes something, so each wants to be named.

$ alfenctl list
Found 1 charging station(s):

  OBJECT ID        ADDRESS              PROTO  HOSTNAME
  ace0781464       192.168.11.42:443    https  alfen-ace0781464.local.

$ alfenctl props --station ace0781464 '*current*'
ID      NAME                          VALUE  ACCESS  TITLE
2062_0  sysMaxStationCurrent          25.0   rw      Automat
2128_0  socket1StartCurrent           0.0    rw      Start Current Socket 1
…

$ alfenctl set --station ace0781464 sysMaxStationCurrent 32
2062_0 sysMaxStationCurrent = 32.0

$ alfenctl set --station ace0781464 100A_0 9.9.9
error: 100A_0 (Manufacturer software version) is read-only

Every station command takes the same connection options; ids are always hexadecimal (2050, 2050_1, 2050sub1), and property names resolve too. Values are validated before anything is sent — the charger's own type and access metadata (read-only is access 1) plus the EDS catalog's ranges, lengths and enumerations (an option's label, e.g. Compact, is accepted for its stored value).

A few things it does

$ alfenctl list                                    # find the chargers here
$ alfenctl status --station garage --watch         # what one is doing, live
$ alfenctl set sysMaxStationCurrent 20 --station garage
$ alfenctl export garage.json --station garage --writable-only
$ alfenctl firmware --station garage               # pick a release and install it
$ alfenctl ui                                      # all of the above, in a browser

Every command takes --station NAME (from the settings file below), or a charger's Object ID or IP, or --host <ip> to skip discovery entirely.

Configuration file

So credentials aren't retyped on every invocation, commands read alfen.toml. alfenctl config init writes a commented one where alfenctl looks for it (~/.config/alfen/alfen.toml, %APPDATA%\alfen\alfen.toml on Windows, $XDG_CONFIG_HOME/alfen/alfen.toml if that is set), alfenctl config path prints that location, and --config FILE overrides it.

Top-level keys are defaults, [stations.<name>] tables override per station, and command-line flags override everything. Unknown keys are rejected, so a typo can't silently no-op. alfenctl config show prints what was actually read, with the passwords left out.

username = "admin"               # default credentials
password = "secret"

[stations.garage]                # alfenctl props --station garage
host = "192.168.11.42"

[stations.old]                   # a pre-5.0 charger on HTTP
host = "192.168.11.43"
http = true
username = "cpadmin"
password = "L@0Pa$$"

Without a config entry, --station still works with a charger's Object ID (serial) or IP, resolved via mDNS discovery; --host IP targets a charger directly.

Documentation

• docs/usage.md — one section per job, with the commands to type: firmware, logos, the event log, charging sessions, RFID tags, passwords, presets, meter maps, smart charging networks.
• docs/reference.md — the options every command takes, the exit codes, and the limitations worth knowing.
• docs/web-ui.md — what alfenctl ui shows, and the reasoning behind how it looks.
• docs/how-it-works.md — discovery, the charger's HTTP API, the property catalog, the firmware containers, licensing.
• CONTRIBUTING.md — how to run the tests and the linters, and how the code is laid out.
• CHANGELOG.md — what changed, per release.

License

EUPL-1.2 — see LICENSE, with the carve-outs listed in NOTICE. The source stays open: if you pass the software on, or run a modified version as a network service, you make the source of your changes available to those users too.

This project is not affiliated with, or endorsed by, Alfen B.V. "Alfen" and product names are trademarks of their respective owners. The protocol details were reverse-engineered from the vendor's own installer for interoperability.
