Hand every force iteration to a callback and watch a solve converge

[CharlesCNorton]

Change - vmecpp.run takes an iteration_callback, called once per force iteration from the master thread with an IterationSnapshot: the iteration counter and multigrid stage, ns, the three invariant residuals and the stage's ftol, the time step, the restart reason, the Jacobian-reset count, whether the vacuum pressure is in the force balance, the MHD energy, and the R, Z and lambda coefficients of the state as a Geometry. Returning False stops the run, which returns the state reached with ier_flag = 2, VMEC 8.52's more_iter_flag, added as VmecStatus::MORE_ITERATIONS_NEEDED. vmecpp.watch(input) sits on it: the same solve as run, drawn while it runs as the flux surfaces at a few toroidal angles above the residual trace, with the multigrid stages and the restarts marked, into a window, a .gif or video file, or both; closing the window stops the solve. On the C++ side run, Vmec::FromIndata and the constructor take an IterationCallback beside the interrupt callback, GatherSpectralStateFromThreads collects the spectral state and the flux profiles without the real-space fields and shares its per-surface copy with the full gather, and MakeGeometry turns that into the snapshot's geometry.

Cause - the loop offered no view of an iteration: the residual history after the fact and the printout every nstep. The geometry of an iteration was reachable only through the Python-owned single-thread loop, which does not run free-boundary cases.

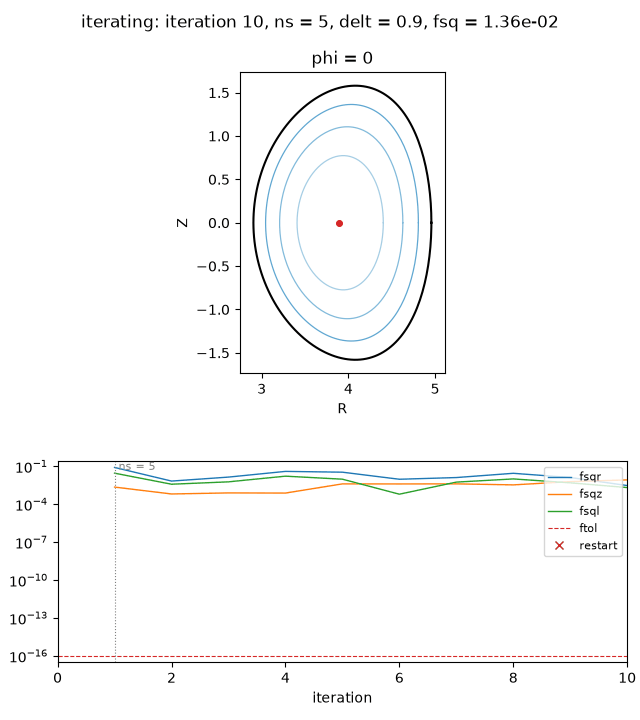

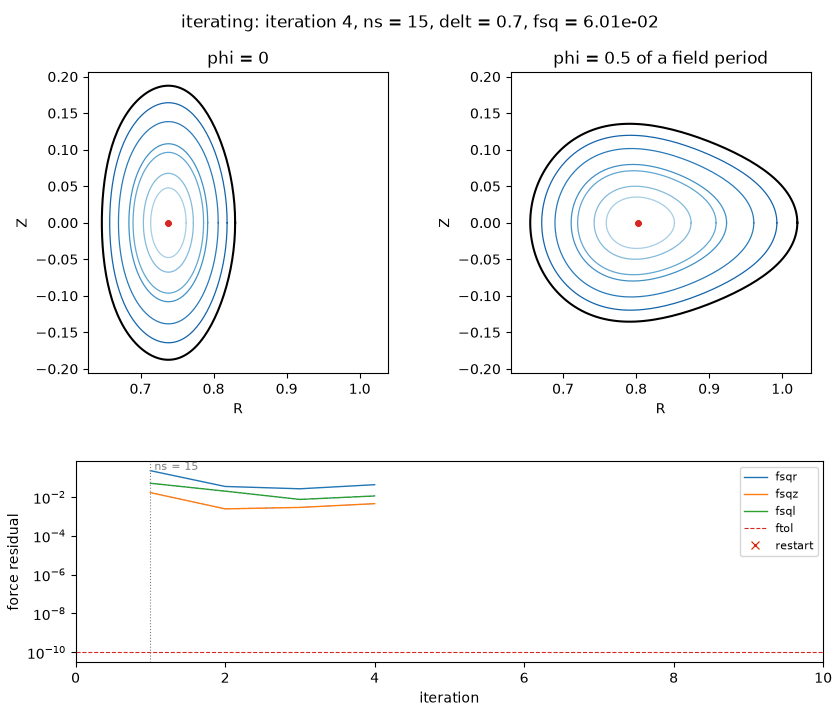

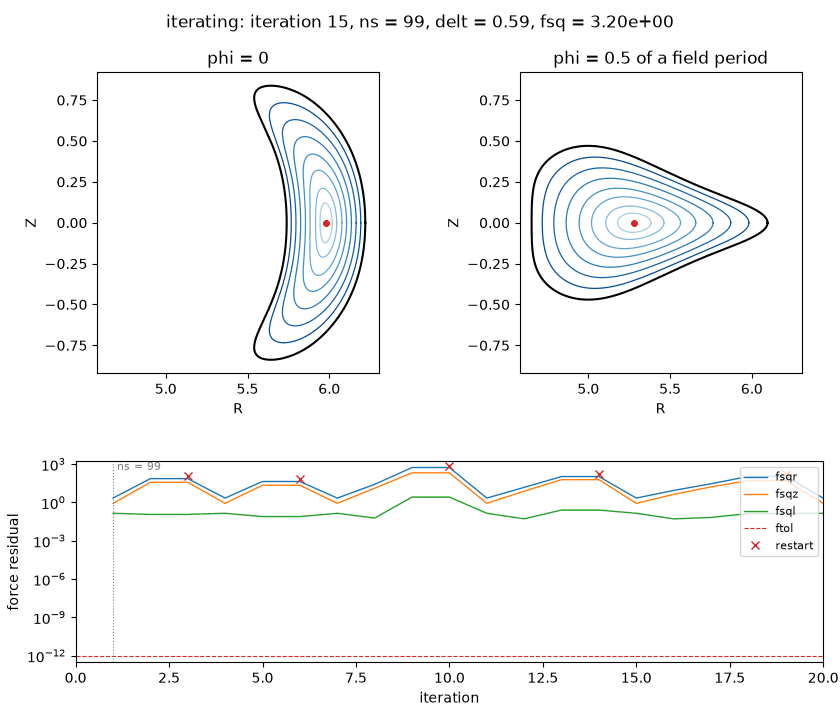

Evidence - examples/data/solovev.json (every 10th iteration), the free-boundary cth_like_free_bdy (every 4th) and examples/data/w7x.json (every 20th), recorded with vmecpp.watch:

The snapshot is a copy of the spectral state and one Python call, about a millisecond per iteration: cth_like_fixed_bdy takes 0.57 s without and 0.67 s with a callback that stores every snapshot, cth_like_fixed_bdy_asym 1.34 s and 1.39 s. A drawn frame costs 60 ms.

Tests - IterationCallbackSeesEveryIterationAndCanStop in vmec_test: one snapshot per entry of the residual history with bit-identical residuals, one converged snapshot per multigrid stage whose geometry equals the output's, and a stop at iteration 20 that returns ns_array[0] with ier_flag 2. tests/test_watch.py: the same through Python on solovev and the symmetric and asymmetric cth cases, an exception raised in the callback propagating, the drawn cross-sections against vmecpp.geometry.evaluate on every surface to 1e-12, the frame count of a recorded animation, the stop when the window closes, and the refusal to run with neither a window nor a file. bazel test --config=opt //vmecpp/... and pytest pass.

Scope - without a callback nothing changes: no barrier is added to the loop and the outputs are the ones the existing tests compare. matplotlib is imported inside watch, so it stays an optional dependency; the README gains a paragraph and examples/watch_solve.py records or shows a solve from the command line.
