laya-apple

English | 繁體中文 | 简体中文

Run Laya on your Mac's GPU and Neural Engine at the same time, and use the Neural Engine only where it gives upstream's answers.

Laya answers typed questions about a context (choice, score, noul) in one forward pass. laya-apple runs upstream Laya on both engines and picks one per request.

New in 1.6.3 (measured on macOS 27.0): a first artifacts fetch compiles once instead of twice. One L128 import took about 75 s instead of 146 s in the preregistered run, and 76–91 s instead of 149–154 s with the shipped artifacts import (release notes).

Why use it

• Correct ANE results, not just fast ones. On the tested Mac, a plain Core ML export ran on the Neural Engine (ANE) without a single error and still disagreed with upstream on up to 85 decisions. laya-apple uses an ANE artifact only after it passes a parity gate on your machine (Correctness).
• Short decisions stop queueing behind long work. Single-question requests go to the ANE when a validated artifact is present; long and multi-question ones stay on the GPU. With execution="workers" both engines serve at once. Measured on one Apple M4 Max; watch it with uvx laya-apple switchyard (Switchyard, GPU + ANE benchmarks).
• A local stand-in for the Jev API. laya-apple serve answers existing Jev clients with upstream Laya on your Mac, without changes to the client (Local Jev-compatible server).
• Every routing decision is explained. Each result records its device and routing_reason. Ask for the ANE explicitly and you get the validated artifact or an exception, never a silent fallback (How it works).

Install

Apple silicon, Python 3.11–3.13:

pip install 'laya-apple[ane]'   # MLX GPU + the Neural Engine runtime

Extra	Adds
(none)	The MLX GPU runtime only
ane	The Neural Engine runtime (coremltools 9.0, pyobjc-framework-CoreML)
convert	Building ANE artifacts on this Mac (torch 2.7.0); not needed for artifacts fetch
serve	laya-apple serve, the local Jev-compatible server

Without the ane extra, or without a built ANE artifact, everything runs on the MLX GPU. To run from source or develop laya-apple, see CONTRIBUTING.md.

Quickstart

from laya_apple import Laya

model = Laya.from_pretrained("convaiinnovations/laya-typed-decisions", device="auto")

result = model.predict(
    context="The customer was charged twice for the same invoice and is frustrated.",
    questions={
        "urgency": {
            "type": "choice",
            "instructions": "How urgent is this?",
            "criteria": ["low", "medium", "high"],
        }
    },
)
rt = result.runtime
print(result.answers["urgency"]["choice"])
print(rt.device, rt.routing_reason, f"{rt.latency_ms:.1f} ms")

On the tested machine:

high
ane validated_short_single_question_path 11.2 ms

• The first call downloads the pinned checkpoint. After that it works offline (local_files_only=True).
• Without an ANE artifact the same request runs on MLX, and routing_reason says why.
• On Apple M4 Max with macOS 26 or 27 and coremltools 9.0, fetch a prebuilt artifact; it is validated on your Mac: laya-apple artifacts fetch laya-typed-decisions.
• Anywhere else, build one (needs the convert extra): laya-apple artifacts build laya-typed-decisions.
• Probabilities, other question types and the full API: examples/, the user guide and docs/api.md.

For concurrent GPU + ANE serving, use execution="workers" and submit requests from any thread:

with Laya.from_pretrained("convaiinnovations/laya-typed-decisions", execution="workers") as model:
    futures = [model.submit(context=c, questions=q) for c, q in requests]   # thread-safe

Fetch validated ANE artifacts, then route by language (1.6)

pip install -U 'laya-apple[ane]'
laya-apple artifacts fetch laya                  # prebuilt ANE artifacts, validated here
laya-apple artifacts fetch laya-multilingual

from laya_apple import Laya

with Laya.from_pretrained("auto") as model:       # laya or laya-multilingual, per request
    result = model.predict(context=context, questions=questions)
    rt = result.runtime
    print(rt.model, rt.model_routing, rt.device, rt.routing_reason)

• Language routing. Laya.from_pretrained("auto") returns a LayaRouter that loads laya and laya-multilingual and picks one per request by the language of the context, with the same function laya-apple serve --model auto uses. Why is in RuntimeInfo.model_routing (docs/api.md).
• Prebuilt ANE artifacts, checked on your Mac. laya-apple artifacts fetch MODEL downloads a prebuilt artifact from tc3oliver/laya-apple-artifacts and registers it through the validating artifacts import: SHA-256 against the index, manifest and platform profile, compute plan, the full FP16 parity gate and the placement probe, all on the receiving machine. A download is trusted no more than a local build. Fetch reads that repository at a pinned, validated commit, never its mutable main. You skip the local build, and with it PyTorch and the convert extra. On a first install those checks run at the registered path, so the on-device compile is paid once, not twice. On an M4 Max with macOS 27.0, one laya-typed-decisions L128 import took about 75 s instead of 146 s in the preregistered run, and 76–91 s instead of 149–154 s with the shipped artifacts import (research/import-compile-once/results.md).
• predict as before; predict_shortlist opt-in. For choice questions with many labels, predict_shortlist(..., embed_fn, k=20) keeps the k labels most similar to the request, then runs one predict. predict itself is unchanged (examples/auto_fetch_shortlist.py).

Limits:

• Prebuilt artifacts exist for two platform profiles: Apple M4 Max with coremltools 9.0, on macOS 26 and (since 1.6.2) macOS 27. Every other Mac gets ArtifactMissingError naming the build command, and builds locally as before (laya-apple artifacts build MODEL, convert extra).
• The published artifacts were checked by a clean-cache download on each profile: fetch, verify, parity and placement passed for all 10 model/bucket pairs (macOS 26.6.2, macOS 27.0). Both checks ran on the build machine with an empty cache. Every receiving machine repeats the integrity, platform, parity and placement checks before it registers an artifact.
• The first Core ML load still compiles on the device: about 4.5 minutes on macOS 26. In one run, laya-typed-decisions (buckets 64/96/128) took 273.5 s cold at a new location against 2.7 s warm (research/coreml-compile-cache/screen.md); about 210 s on macOS 27.0 (research/coreml-compile-cache/results.md). Fetching does not remove it: the import pays it once, at the registered path. ane_startup="background" serves on MLX in the meantime.

Smaller 1.6 changes: an MLX fast path (a token-id cache on by default; mx.compile and length-bucketed batching opt-in; see Limitations for what was measured), and W8 ANE research that ships nothing (Limitations). Release notes: docs/releases/v1.6.0.md.

GPU + ANE benchmarks

Except for the community results, every number in this section comes from one Apple M4 Max (Community benchmarks).

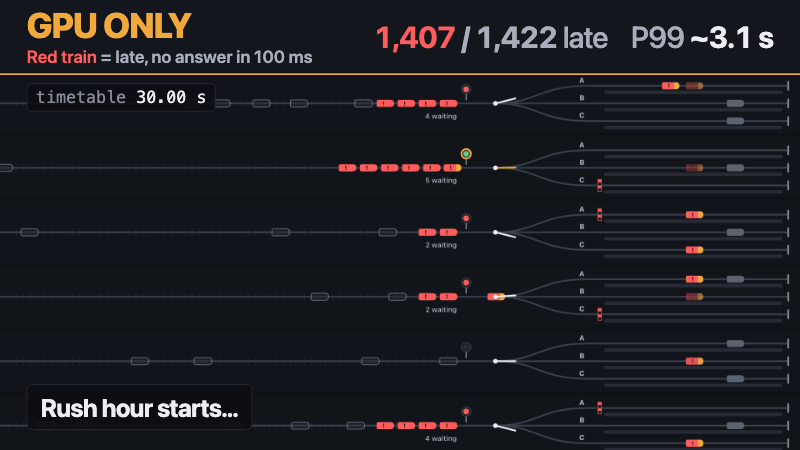

See it yourself: Switchyard

uvx laya-apple switchyard

Every train is a real Laya decision ("which platform is clear?"). A red signal means the train is waiting for the model's answer; a train is late when it has no answer within 100 ms. Rush hour adds bursts of load, with long background requests on the GPU.

Same timetable, same model	MLX GPU only	MLX GPU + Neural Engine
Late trains	1,407–1,408 / 1,422	0 / 1,422
P99 decision latency	3,107.7–3,170.6 ms	54.5–54.7 ms
P99 queue wait	3,095.9–3,158.8 ms	39.6–42.8 ms

• Three standard runs on one Apple M4 Max (macOS 26.6.2, laya-typed-decisions). In every run both rounds gave the same answer for every train.
• Most of the gap comes from short decisions no longer waiting in the GPU queue while the long requests keep running there.
• The benchmark runs headless; the animation is a replay, not the measurement. These numbers are not comparable with the v1.0 results below (different rate, boundary and workload).

First-run download, setup, method and raw data: docs/switchyard.md and benchmarks/switchyard/README.md.

Original heterogeneous serving benchmark (v1.0)

These results showed the value of GPU + ANE serving and were measured before 1.5 adaptive execution.

Model	Throughput vs GPU-only	Short P99, GPU-only	Short P99, GPU + ANE
laya	2.92×	1538.0 ms	108.5 ms
laya-multilingual	4.34×	2052.3 ms	29.6 ms
laya-typed-decisions	4.57×	1592.9 ms	79.5 ms

One Apple M4 Max, a short and a long request stream through one Laya(execution="workers"). Short P99 is measured from arrival under open-loop bursty load, so queueing counts. The gain comes from running both engines at once, not from raw ANE speed. Method and raw data: benchmarks/v1.0.md.

Adaptive ANE execution (1.5)

With the ANE on a thread in the same process, the synchronous Core ML call holds the GIL for much of each prediction, so a GPU request that had already finished could not hand its result back until that call returned (research/coreml-gil-completion-path/). In 1.5, laya and laya-typed-decisions run eligible ANE requests through asynchronous Core ML execution, and on a sustained slowdown the runtime falls back to the known-safe 1.4 synchronous path. With execution="workers" and device="auto" it is on by default and needs no other code change.

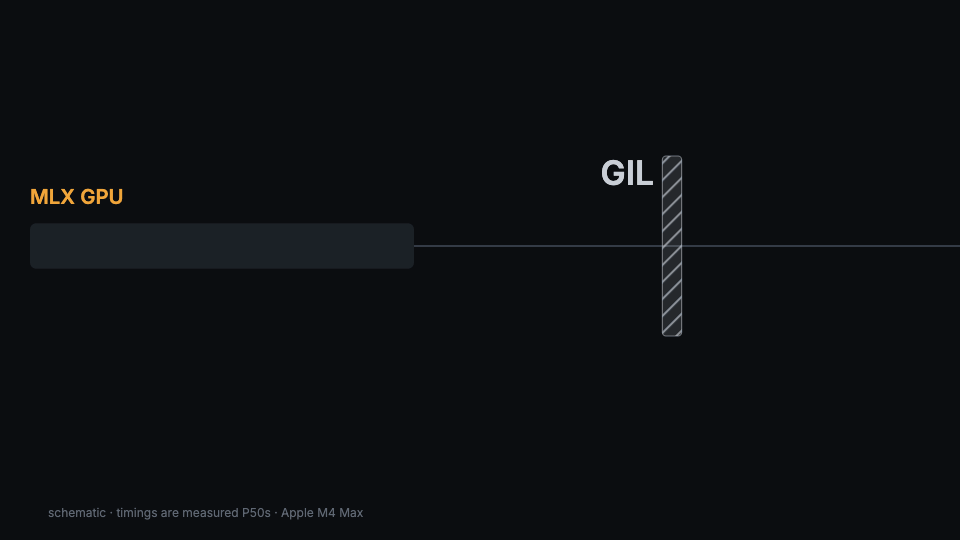

The first 10 s are a schematic. Sources for every number on screen: docs/media/release15-social.md.

vs the 1.4 path (one Apple M4 Max)	laya	laya-typed-decisions
GPU return (P50)	4.28–4.29 → 0.035–0.037 ms	8.60 → 0.043 ms
Throughput	1.042×	1.038×

GPU return is the time from the GPU worker finishing a request to its result reaching the caller, not GPU compute time. On the 1.4 path, finished work waited 4.3–8.6 ms, almost all of it for the GIL.

• Validation. 154 production validation episodes (76 laya, 78 typed-decisions, including bursts and soaks). Every episode stayed on the asynchronous path after the handoff, with no mismatches, routing failures, lost requests or crashes. No slow state occurred in these runs, so the fallback never triggered in them (val_tables.md).
• Recovery, a separate controlled experiment. In 12 of 12 episodes where the asynchronous path was already slow, the runtime detected it within 40 ms and was back to the 1.4 path's latency within 164–414 ms (phase1_tables.md).

The full story, from the GIL diagnosis to the adaptive breaker: research/coreml-gil-completion-path/, research/coreml-adaptive-breaker/ and the 1.5 release notes.

Community benchmarks

Every benchmark in this README ran on an M4 Max. The community matrix keeps results from other Macs separate, and already has an M4 Pro, an M4 and an M2 Pro (MLX only). One command adds yours:

uv run python scripts/hardware_report.py --quick

The full steps, from git clone to the pull request, are in the guide.

Local Jev-compatible server

laya-apple serve is a local stand-in for the Jev API. It serves the same API (POST /v1/systemone) on loopback and answers with upstream Laya, running on your Mac. Point an existing Jev client at it through its base-URL setting; the client's code does not change.

pip install 'laya-apple[serve,ane]'
laya-apple serve                                   # http://127.0.0.1:8642
export TYPESAFE_BASE_URL=http://127.0.0.1:8642     # then run your Jev client as usual

• Tested with 7 unmodified Jev clients at their released versions, including the Python and JS SDKs and two Claude Code plugins (integrations/jev-plugins/README.md).
• The answers are Laya's, not Jev's. 792 of 792 requests matched unmodified upstream laya.serve 0.3.20 within the FP16 parity gate (benchmarks/serve-compat/). No claim is made about accuracy relative to Jev.

API keys, models, security and client caveats: docs/serve.md.

Earlier serve benchmark

Measured on the 1.3 path with a 27B local LLM generating at saturation on the same Mac, short-decision P99 was 47.2 ms with heterogeneous auto serving against 122.3 ms GPU-only (one run on one M4 Max, --model laya). Run 3, on laya-apple 1.5.0 with its defaults, measured 41.7 ms (auto) against 79.5 ms (--device gpu), and every preregistered criterion passed. Adaptive execution was enabled, but its asynchronous path engaged in 0 of 3,222 Neural Engine forwards, so run 3 measures 1.5 serve as shipped, not the asynchronous path (benchmarks/serve/m4-max-r3/tables.md). The runs are separate campaigns; compare them only descriptively. LLM throughput cost, method and limits: docs/serve.md.

How it works

A Mac has two engines that can run Laya, and each is faster for different requests.

1. Correct ANE execution. A fast Core ML export is not necessarily a correct one. laya-apple uses an ANE artifact only after it passes a parity gate on the machine that uses it (Correctness).
2. Automatic routing. The router picks a device before a request runs and records why in routing_reason. Under load it also compares the two queues' backlogs.
3. Concurrent GPU + ANE serving. With execution="workers", the GPU runs in a worker process and the ANE on its own dispatcher, so short requests stop queueing behind long ones.
4. Adaptive ANE execution (1.5). After a conservative handoff at the start of each GPU + ANE overlap, eligible ANE requests use asynchronous Core ML, so finished GPU work is not held back by the synchronous path's long GIL hold. Per-request timing tells the runtime when that path slows down; a sustained slowdown sends the rest of the overlap back to the known-safe synchronous path. ane_handoff=False turns it off (guide).

Request	Goes to	Why (measured on the tested Mac)
One question, ≤ 128 tokens, validated artifact present	ANE	Faster: laya-typed-decisions L128 takes 9.9 ms on the ANE against 12.2 ms on MLX (forward P50)
Longer context	MLX GPU	MLX is faster there: 19.2 ms at L256 and 71.0 ms at L1024
Several questions	MLX GPU	MLX batches the questions; the ANE runs them one at a time
Unvalidated Mac, missing artifact, or no Core ML	MLX GPU	Recorded as platform_not_validated, ane_artifact_unavailable or ane_runtime_unavailable

Full routing thresholds and calibration evidence: docs/support-matrix.md.

Completed requests can emit a RequestTrace (routing decision, queue, service and response timing) through trace= (docs/api.md). Adaptive execution watches the same per-request timing; you do not need to pass trace= for it. Architecture: docs/architecture.md.

Supported models and platforms

Model	max_len	MLX GPU	ANE buckets (explicit)	ANE buckets used by auto	Adaptive ANE execution
convaiinnovations/laya	512	FP16 / FP32, any length	64, 96, 128	64, 96, 128	Yes
convaiinnovations/laya-multilingual	1024	FP16 / FP32, any length	64, 96, 128, 256	64, 96, 128	No (worker-process ANE)
convaiinnovations/laya-typed-decisions	1024	FP16 / FP32, any length	64, 96, 128	64, 96, 128	Yes

Adaptive ANE execution applies with execution="workers" and device="auto". Validated on one Apple M4 Max with macOS 26.6.2. Shipped routing profiles cover the Apple M4 Max with coremltools 9.0 on macOS 26.6.2 and macOS 27.0, so auto uses the ANE there once the artifacts are built or fetched. The macOS 27 profile matches every 27.x, but only 27.0 was measured. On macOS 27 only build, parity, routing and the prebuilt fetch check were measured; adaptive execution, serve and the release benchmarks were not (benchmarks/routing-macos27/). On other Macs, auto stays on MLX until ANE artifacts are built and calibrated there (laya-apple calibrate). Prebuilt artifacts (laya-apple artifacts fetch) exist only for Apple M4 Max with coremltools 9.0, on macOS 26 or 27. Details: docs/compatibility.md.

Correctness

Parity against upstream Laya on PyTorch CPU FP32, over the shipped golden rows (v1.0). Each cell gives hard mismatches, then the max probability error.

Implementation on the tested Mac	laya	laya-multilingual	laya-typed-decisions
Ordinary Core ML export · CPU_AND_NE	❌ 12, 0.56	❌ 85, 1.0	❌ 19, 0.42
Ordinary Core ML export · CPU_AND_GPU	✅ 0, 0.0066	✅ 0, 0.0059	✅ 0, 0.0028
laya-apple MLX FP16	✅ 0, 0.0037	✅ 0, 0.0045	✅ 0, 0.0017
laya-apple ANE FP16	✅ 0 (1 near-tie), 0.012	✅ 0, 0.013	✅ 0, 0.0077

• The FP16 gate: probability error ≤ 0.02 and 0 hard mismatches. Near-tie flips are listed, not hidden.
• No silent fallback: an explicit ANE request runs the validated artifact or raises.
• The 1.5 asynchronous path must match coremltools' output exactly on the goldens.

Definitions, every configuration tested and the fallback audit: docs/correctness.md and docs/no-silent-fallback.md.

Limitations

• One test machine. Every benchmark, including the 1.5 validation and recovery runs, is from one Apple M4 Max: macOS 26.6.2, plus build, parity and routing on macOS 27.0. Routing thresholds are not assumed to hold on other Apple SoCs.
• Adaptive execution hands off conservatively: the first ANE requests of every GPU + ANE overlap run the 1.4 path. laya-multilingual, whose ANE runs in a worker process, does not use it.
• The asynchronous path of 1.5 adaptive execution is not measured in laya-apple serve. Serve uses adaptive execution by default. Its run-3 benchmark beside a local LLM ran with it enabled, but every one of 3,222 Neural Engine forwards ran on the 1.4 Core ML path (benchmarks/serve/m4-max-r3/tables.md).
• Long and multi-question requests stay on the GPU, which is faster for them. The ANE path is batch 1 only.
• Isolation is partial. Under concurrency, each stream's P99 is above its solo value.
• Cold start on a fresh artifact location costs 3–5 minutes of Core ML compile per model. ane_startup="background" serves on MLX in the meantime.
• Prebuilt artifacts do not remove the cold start. A fetched artifact still compiles on the device at first load: 273.5 s for laya-typed-decisions (buckets 64/96/128) in one run, against 2.7 s warm (research/coreml-compile-cache/screen.md).
• Core ML's compile cache grows without eviction: 0.7–1.4 GB per bucket for every new artifact location (a fetch, an import, a moved cache). laya-apple never evicts it (guide). Core ML keeps it per process name, so a process with a different name may compile again.
• Prebuilt artifacts exist for two platform profiles only (Apple M4 Max with coremltools 9.0, on macOS 26 and 27), and have been fetched only on the machine that built them, with an empty cache (macOS 26.6.2, macOS 27.0). The macOS 27 profile matches every 27.x, but only 27.0 was measured. No independent check on a second machine of either profile has been done yet. We recommend one before publishing, but it is not required (docs/publishing.md); each receiving machine still validates every artifact before registering it.
• No quantized artifact ships. In the W8 research only the laya-typed-decisions L64 w8-pt result is reproduced (0.650 of FP16 latency); laya and laya-multilingual failed the parity gate (research/ane-w8/README.md).
• The MLX fast-path gains (about 1–4%) come from a screen, not a full benchmark (benchmarks/mlx-fast-path-screen/README.md).
• Switchyard does not counterbalance round order: with the standard seed, GPU + ANE ran first in all three runs.

Benchmark-specific limitations are documented with each experiment, for example option order in docs/correctness.md, serve and client caveats in docs/serve.md, and what has not been measured in docs/compatibility.md.

Research, releases and reproduction

• Reproduction. Each headline number above traces to a report, raw data, a command and an environment in docs/reproducibility.md. The prebuilt-artifact checks are in benchmarks/prebuilt-artifacts-1.6.0.md (macOS 26) and benchmarks/prebuilt-artifacts-1.6.2-macos27.md (macOS 27). The 1.5 evidence is in research/coreml-adaptive-breaker/.
• Research. The research behind the 1.5 and 1.6 releases, failed routes included, is mapped in research/README.md.
• Releases. Every change is in CHANGELOG.md; release notes are in docs/releases/, most recently 1.6.3, 1.6.2 and 1.6.1.

Contributing

The most useful first contribution is a benchmark from a Mac other than an M4 Max (how).

CONTRIBUTING.md covers setup, test tiers and parity checks; coding agents follow AGENTS.md. Open work is labelled good first issue, help wanted and research.

More: user guide · stable API · architecture · changes · security.

Apache-2.0; see LICENSE and NOTICE. Model weights are downloaded from their pinned Hugging Face revisions and are not redistributed. This is an independent project, not an official release of Convai Innovations, Apple or MLX.
